The Engineering Logic Behind 6DOF Stewart Motion Platforms

Whether you’re training a pilot, testing a mission-critical vehicle, or engineering an advanced R&D simulation environment, 6DOF platforms make the experience indistinguishable from reality. But what exactly is the engineering behind these systems, and how are modern industrial sectors leveraging them to gain a decisive competitive edge?

What is a 6DOF Stewart Motion Platform?

In technical terms, 6DOF refers to the ability of a body to move freely within three-dimensional space. To provide absolute realism, a Motion Platform must allow movement across all physical dimensions:

• Linear axes: X, Y, and Z (Surge, Sway, and Heave).
• Rotational axes: Pitch, Roll, and Yaw.

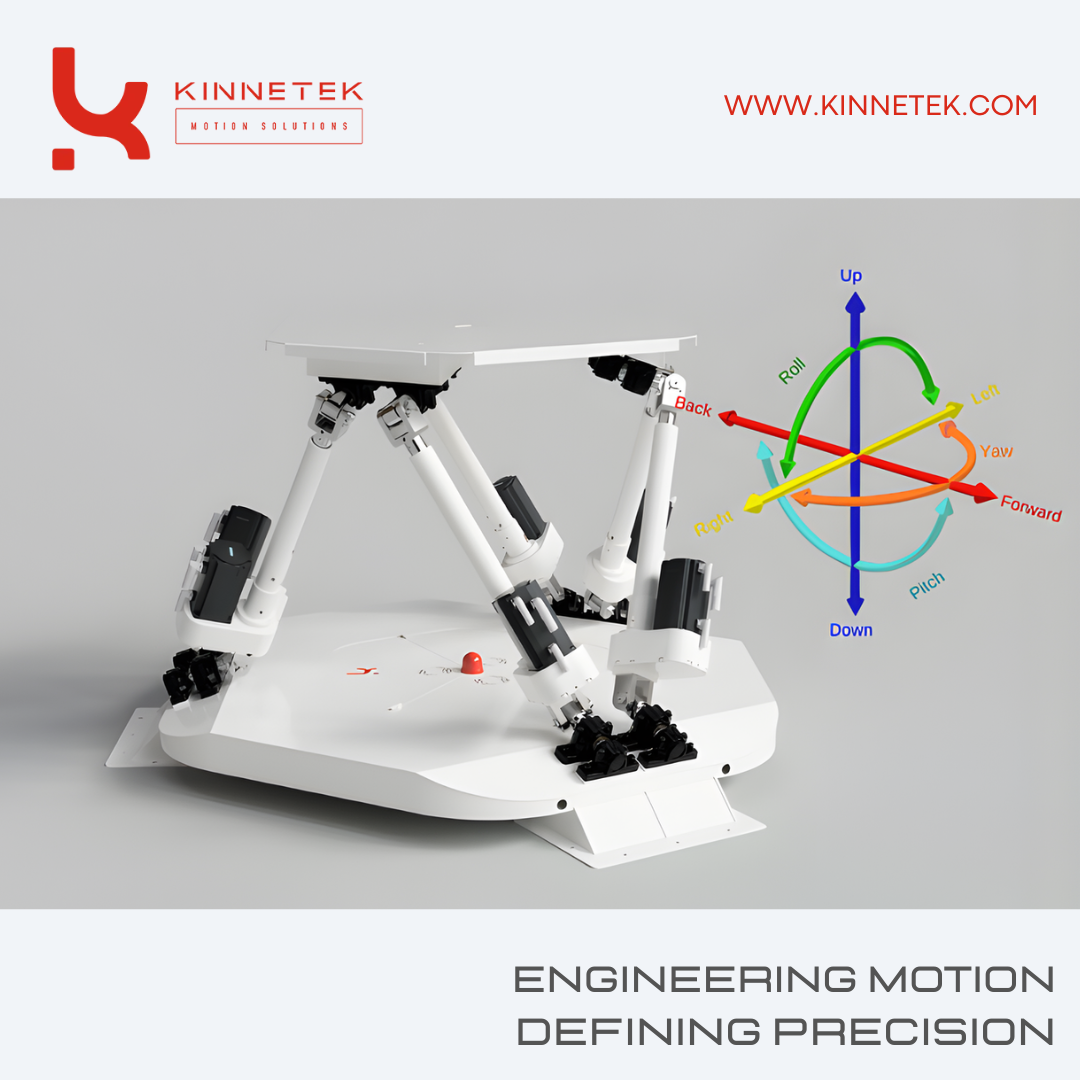

Kinnetek’s systems are built using the classic Stewart Platform design—a hexapod configuration featuring six high-performance Electric Linear Actuators. This parallel-kinematic structure allows for ultra-precise movement in all directions simultaneously, reacting with sub-millisecond latency to control inputs. By utilizing AC Servo Motors integrated with Siemens SINAMICS drives, we ensure that every micron of movement is controlled, repeatable, and mission-ready.

Primary Industrial Applications of 6DOF Platforms

1. High-Fidelity Flight and Aerospace Simulations

Aviation is where 6DOF technology sets the standard. Kinnetek’s motion systems allow commercial flight schools and military organizations to train pilots in environments that reproduce turbulence, stall dynamics, and landing gear signatures with surgical precision. By moving from legacy hydraulic systems to our electric 6DOF architecture, organizations reduce maintenance downtime while achieving EASA Level B/D certification readiness.

2. Driving Simulators and Automotive R&D

From Formula 1 teams to global automotive manufacturers, 6DOF platforms enable engineers to test vehicle behavior—such as suspension response and electronic stability control—without the risk and cost of track testing. Integrated with Mixed Reality (MR) systems, these driving simulators allow for rapid prototyping and human-machine interface (HMI) testing in a controlled laboratory setting.

3. Maritime and Naval Bridge Training

Navigating rough seas requires a mastery of wave dynamics. Our 6DOF platforms replicate complex maritime environments, including pitch and roll frequencies specific to different vessel hulls. This allows naval crews to rehearse emergency procedures and bridge coordination in conditions that would otherwise be dangerous to simulate in the open ocean.

4. Defense and Tactical Mission Readiness

Modern defense contractors rely on Industrial Simulation to prepare tactical teams for high-risk scenarios. Whether it’s simulating the torque and vibration of a main battle tank or the flight profile of a high-altitude UAV, Kinnetek’s ruggedized 6DOF systems provide the haptic feedback necessary for deep muscle memory and tactical proficiency.

Technical Benchmarks: Why Electric Stewart Platforms?

The industry is rapidly pivoting away from hydraulic actuation. The logic is simple: electric systems offer superior control, higher update rates, and near-zero maintenance requirements. In high-fidelity training, the “pump lag” of old-generation hydraulics is a dealbreaker—it leads to simulator sickness and training desensitization.

Why Partner with Kinnetek?

We do not deliver catalog products; we deliver specialized engineering solutions. Our “Engineering to Measure” philosophy means your 6DOF Simulator is designed specifically for your payload, cycle time, and certification requirements. Our platforms are built to integrate seamlessly with existing AI-driven flight models and advanced sensor arrays, ensuring your simulation facility is prepared for the next decade of technological evolution.
