EASA / FAA CERTIFIABLE SOLUTIONS

KNT MOTION
PLATFORMS

We can CUSTOMIZE according to your requirements.

Powered by

Play Video

Architecture

3/6 Degrees of Freedom

Max Payload

7500 kg / 16500 lbs

Max Stroke Length

1550 mm / 60 in

Interface Connection

Ethernet

Transport Delay

Less than 150ms

Update Frequency

100 – 250Hz

SDK

Available

Actuation

Fully Electric / AC Servo Motor

Architecture

3/6 Degrees of Freedom

Max Payload

7500 kg / 16500 lbs

Max Stroke Length

1600 mm / 60 in

Interface Connection

Ethernet

Transport Delay

Less than 150ms

Update Frequency

100 – 250Hz

SDK

Available

Actuation

Fully Electric / AC Servo Motor

3DoF Motion solutions

The most cost-effective solution. Used for ground vehicles and industrial testing, focuses on chassis physics (Pitch, Roll, Yaw). The ideal standard for agile testing and professional Sim Racing.

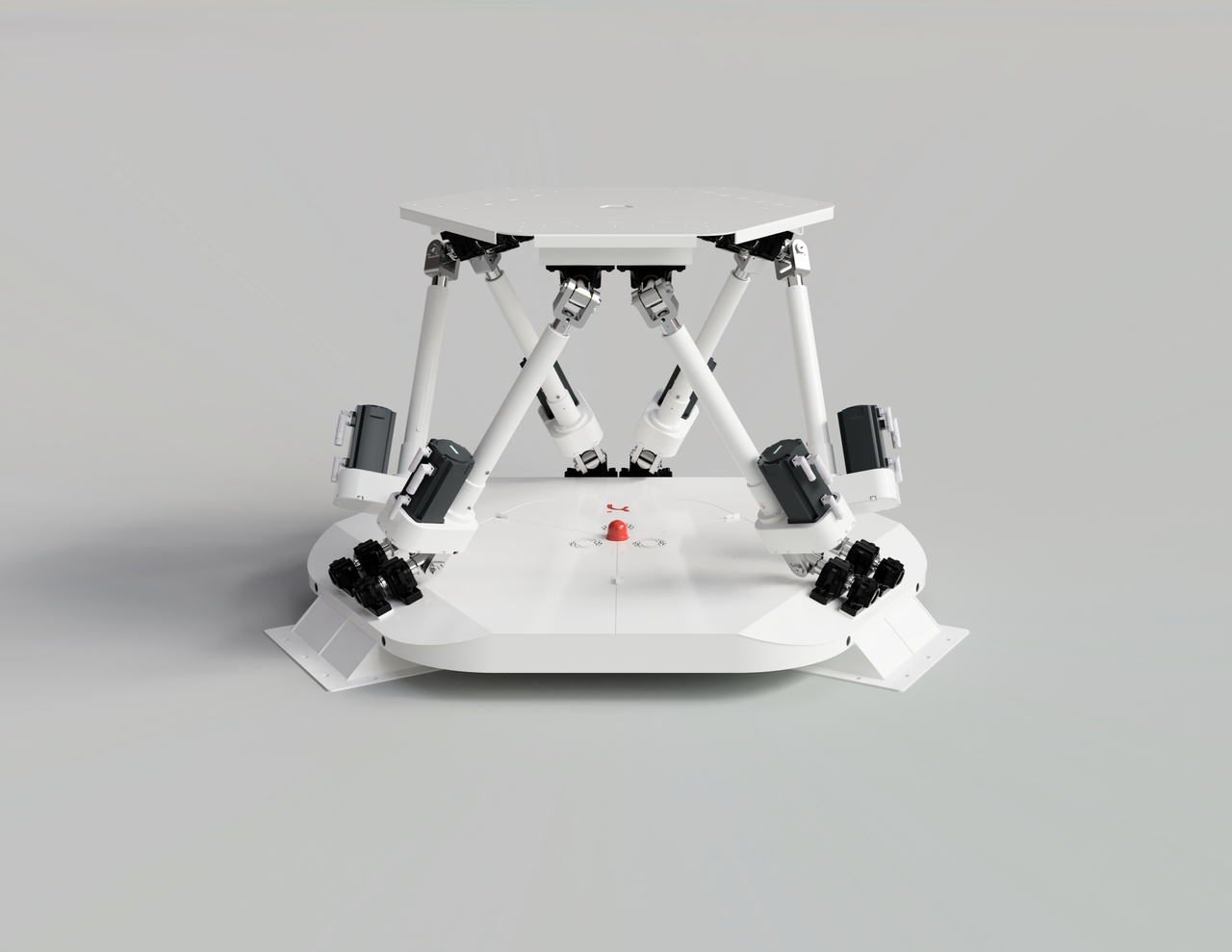

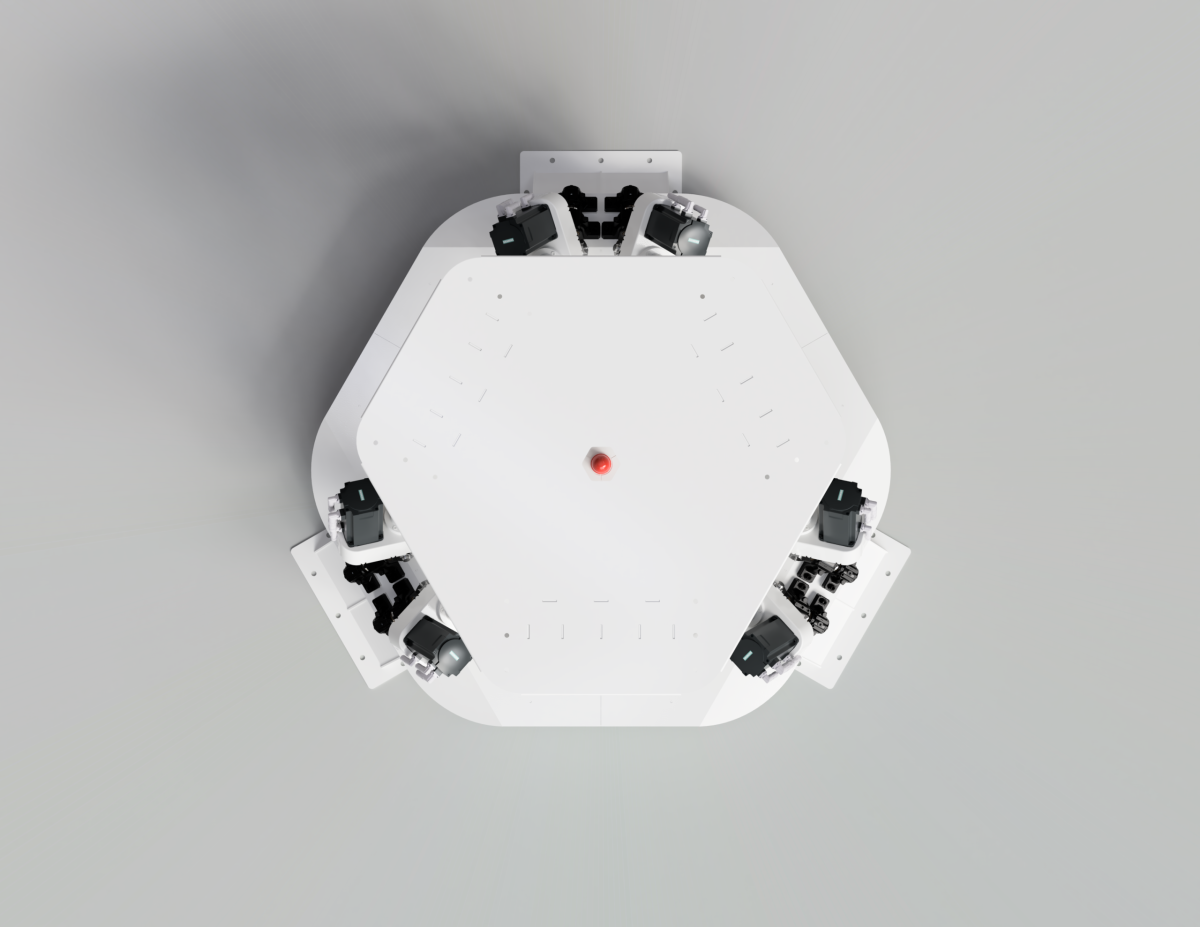

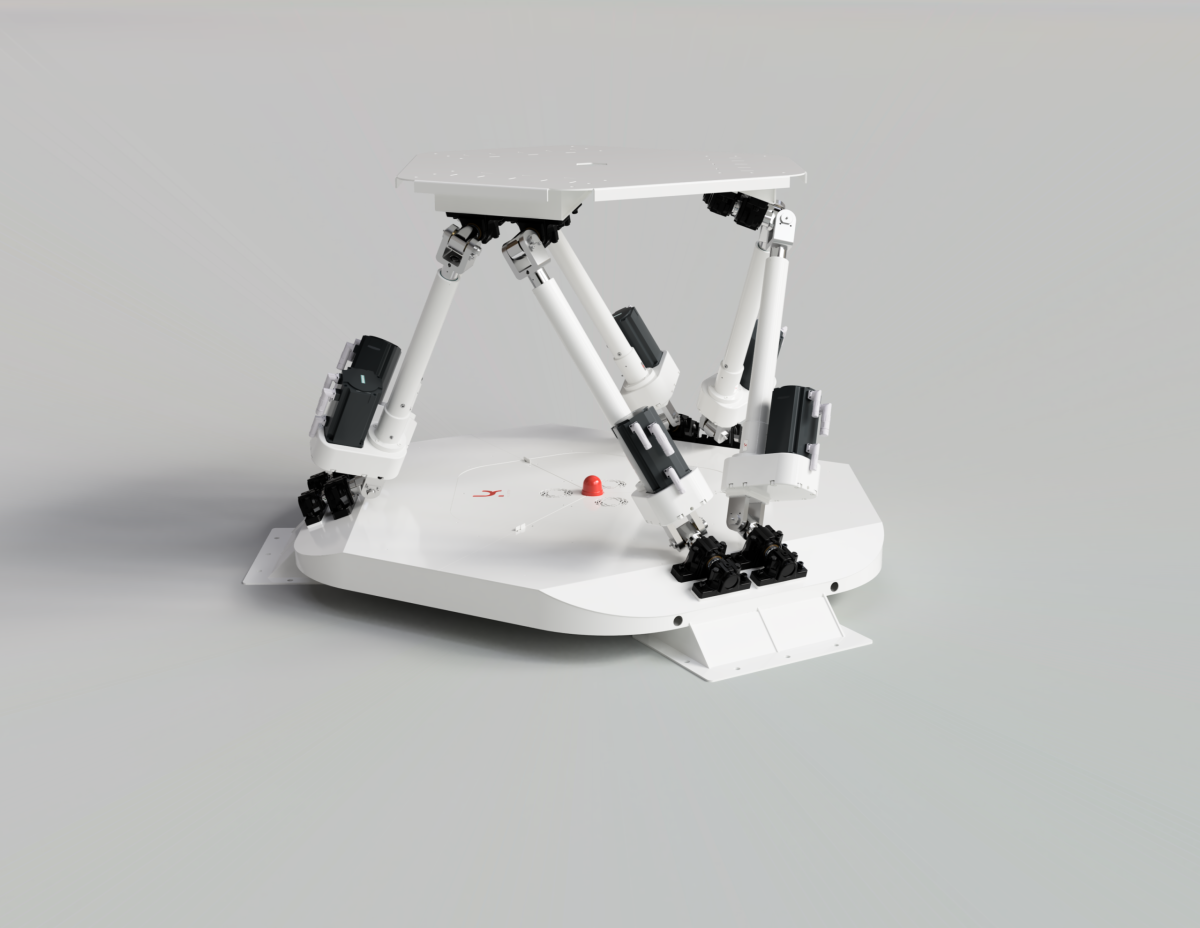

6DoF Motion platforms

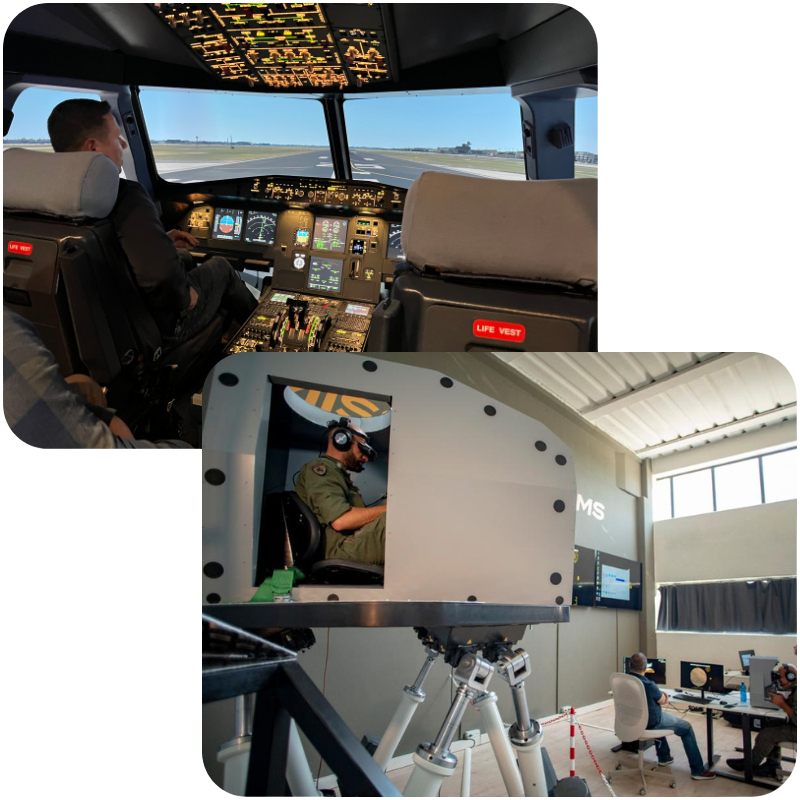

Versatility for any scenario. Adds translational forces (Surge, Sway, Heave) to rotation. The gold standard for flight training, certification, and advanced R&D where precision is non-negotiable.

3DOF MODELS

OUR MOTION PLATFORM PRODUCT LINE

KNT3P-S-1200-100/200

KNT4P-S-1500-100/200

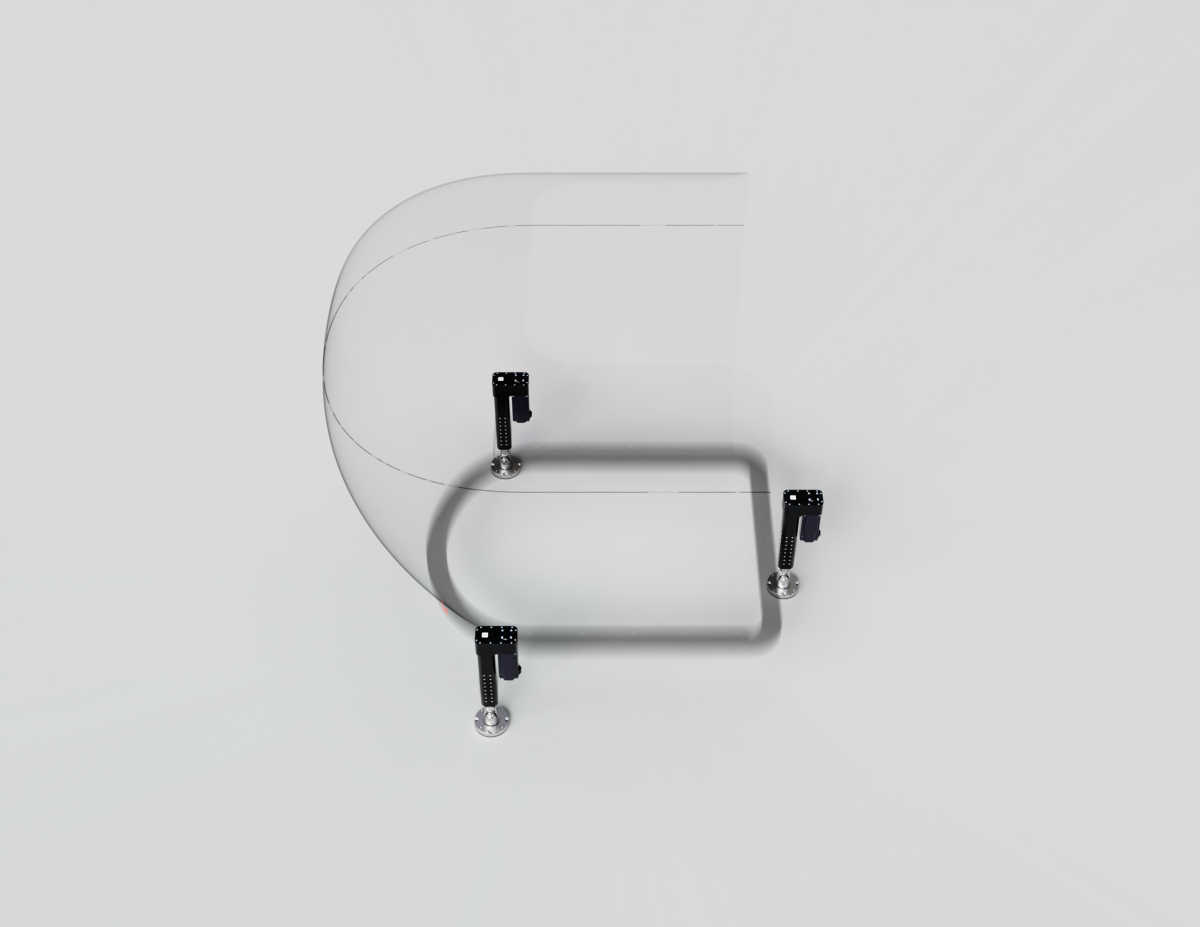

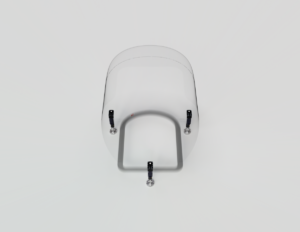

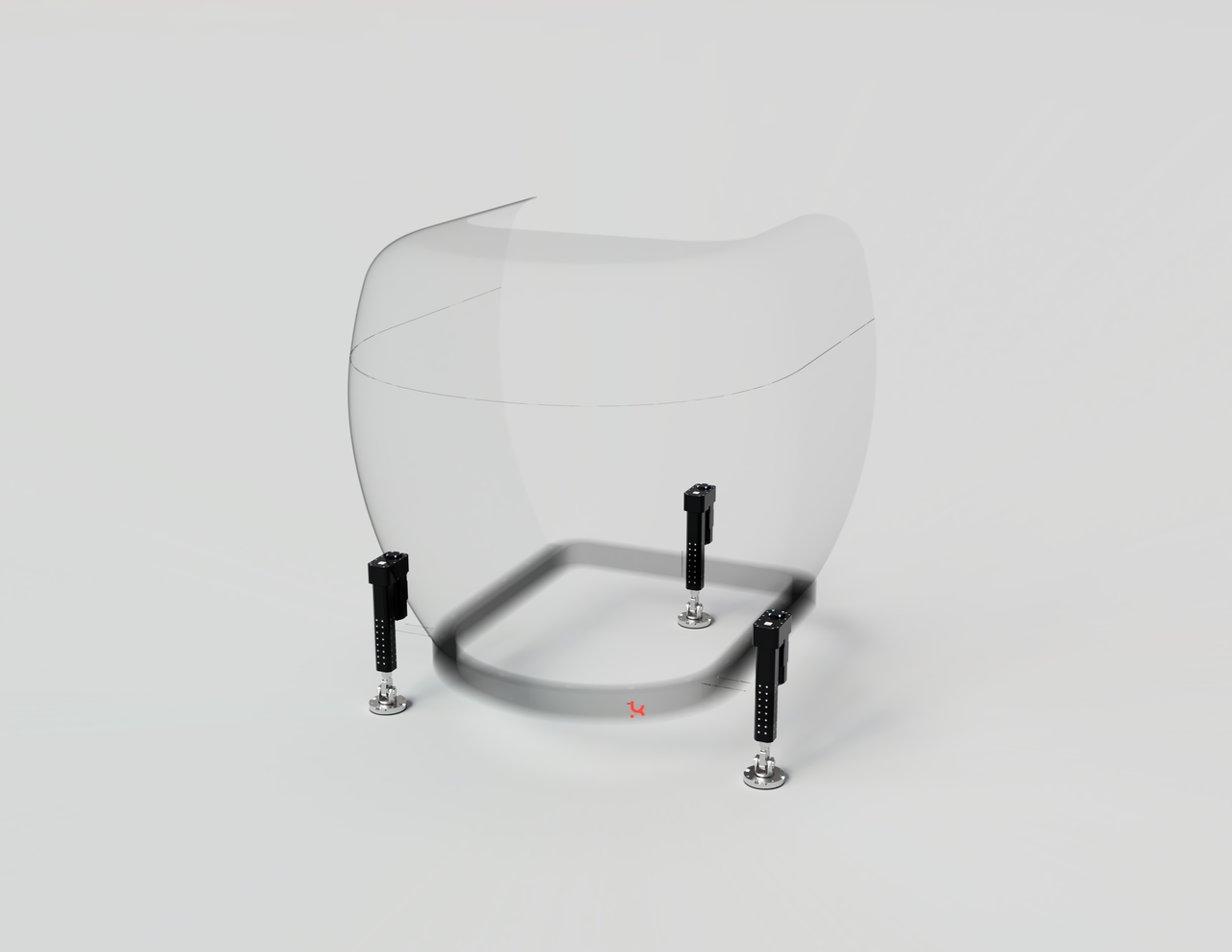

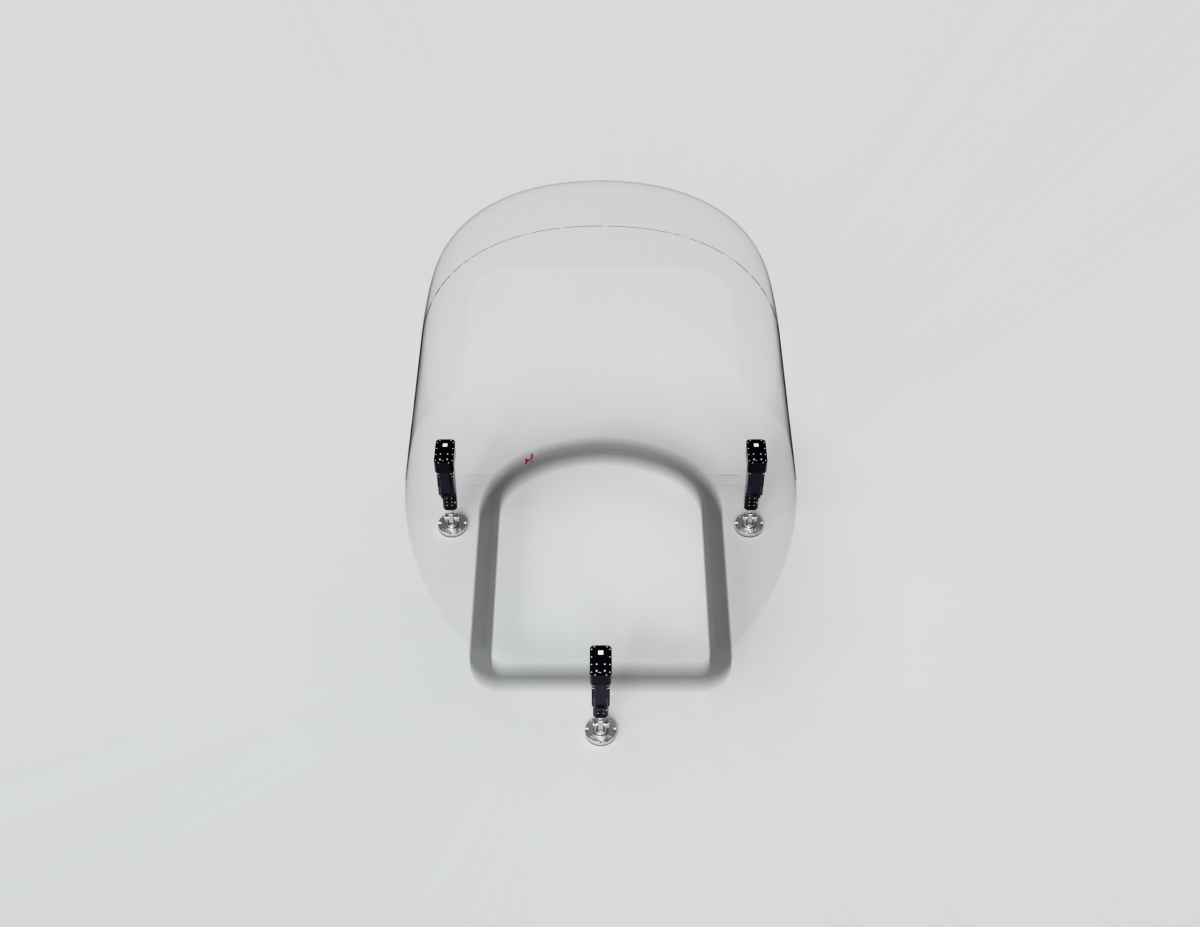

KNT3P-S-1200-100/200

Designed for high-precision simulation in constrained spaces. This 3-axis architecture utilizes vertically mounted linear actuators to deliver rapid rotational cues with a minimal footprint. Despite its compact 100/200 mm - 4/8 in stroke, it supports a 1200kg / 2650lb payload and features an industrial Siemens power system. It provides exceptional transient response with 8 m/s² acceleration, making it ideal for professional sim racing and flight training setups where immediate feedback is critical

For a full list of features and benefits, Contact Us

- Payload: 1200 kg / 2650 lb

- Stroke: 100/200 mm - 4/8 in

- Vertical Acceleration up to 8m/s2

- Power: 3.0 kW (Siemens)

Fail-Safe operation; Built-in Holding Brake

Smooth motion cueing thanks to well programmed and calibrated motion software

Industrial grade high reliability components

Impressive performance to price ratio

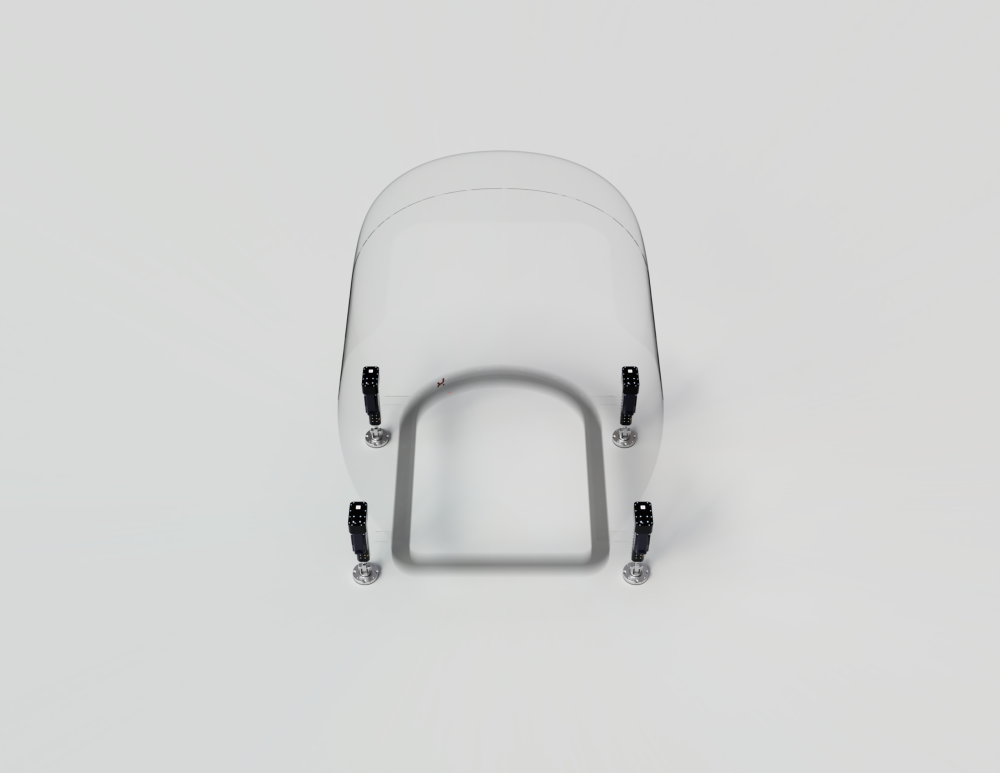

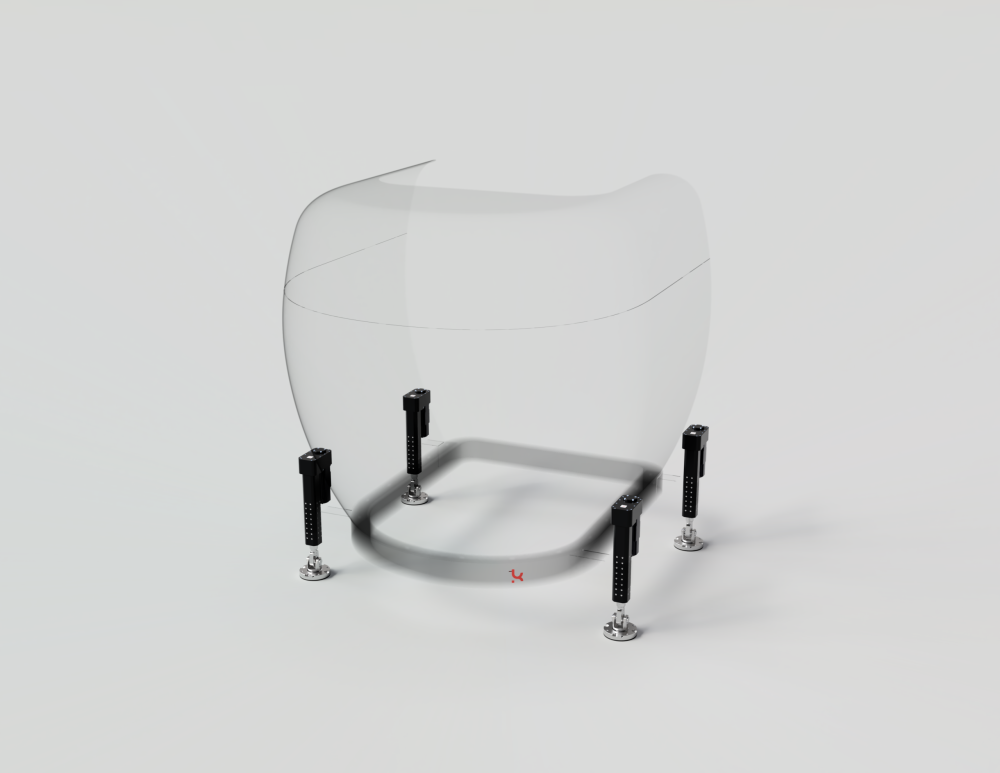

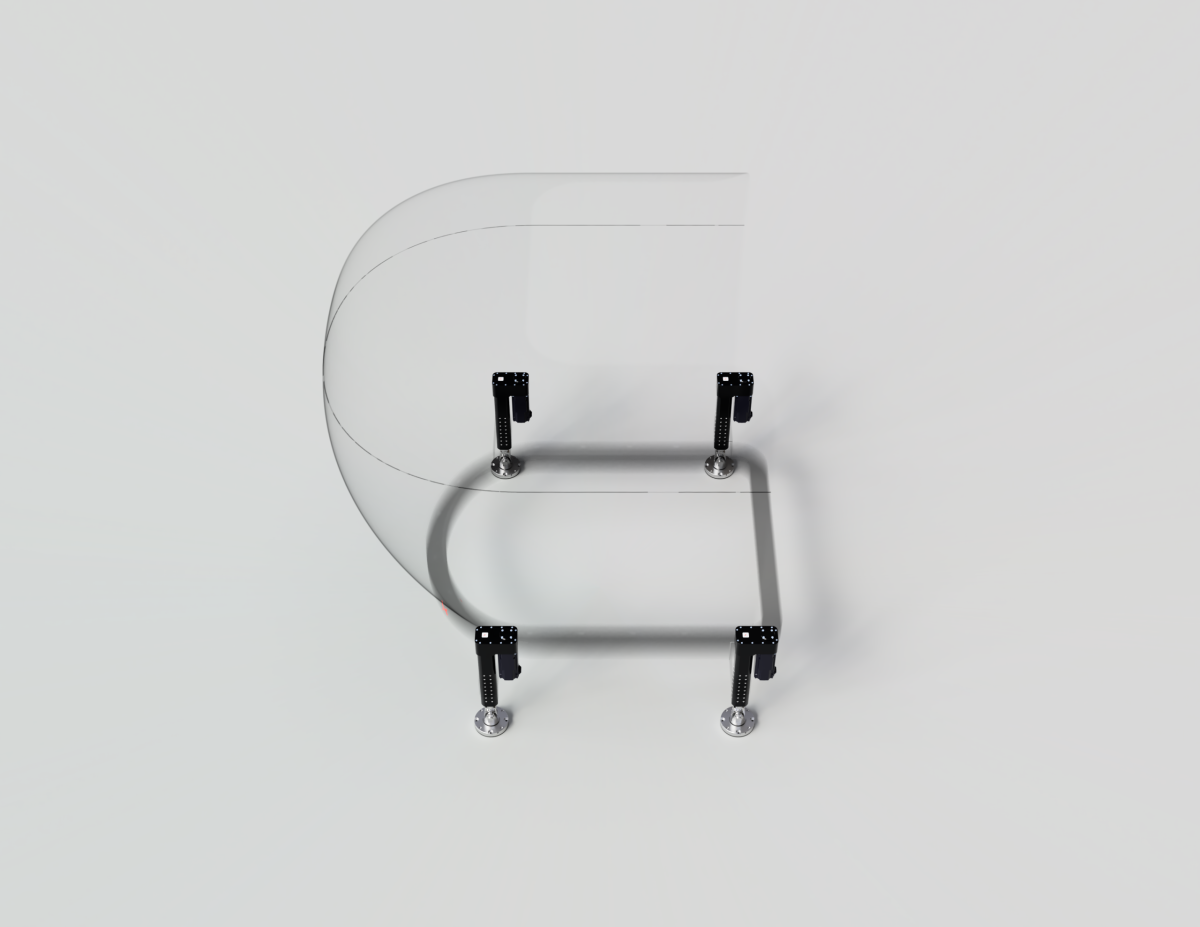

KNT4P-S-1500-100/200

A definitive 4-post solution engineered for heavy-duty stability and automotive R&D. With a substantial 1500kg - 3307lb payload, this system uses four vertically mounted actuators to ensure maximum rigidity and corner-weight precision. Optimized for chassis analysis, it features a 30Hz vibration channel to replicate high-frequency road textures.

For a full list of features and benefits, Contact Us

- Payload: 1500 kg - 3307 lb

- Stroke: 100/200 mm - 4/8 in

- Vibration: Up to 30 Hz

Fail-Safe operation; Built-in Holding Brake

Smooth motion cueing thanks to well programmed and calibrated motion software

Industrial grade high reliability components

Impressive performance to price ratio

6DOF MODELS

OUR MOTION PLATFORM PRODUCT LINE

KNT6SR-7500 FFS
Level B+

KNT6P-1000/2300

KNT6P-250/500

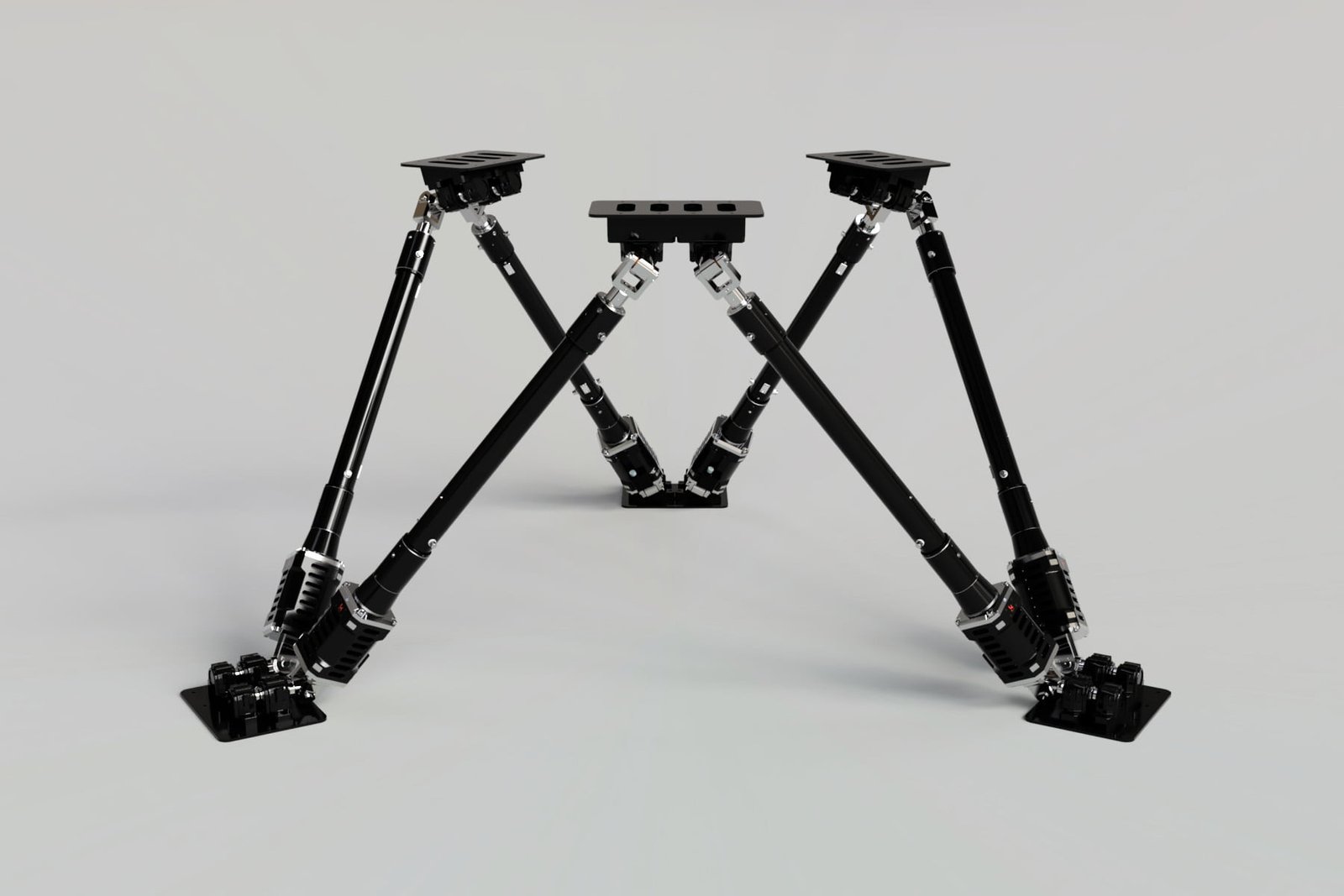

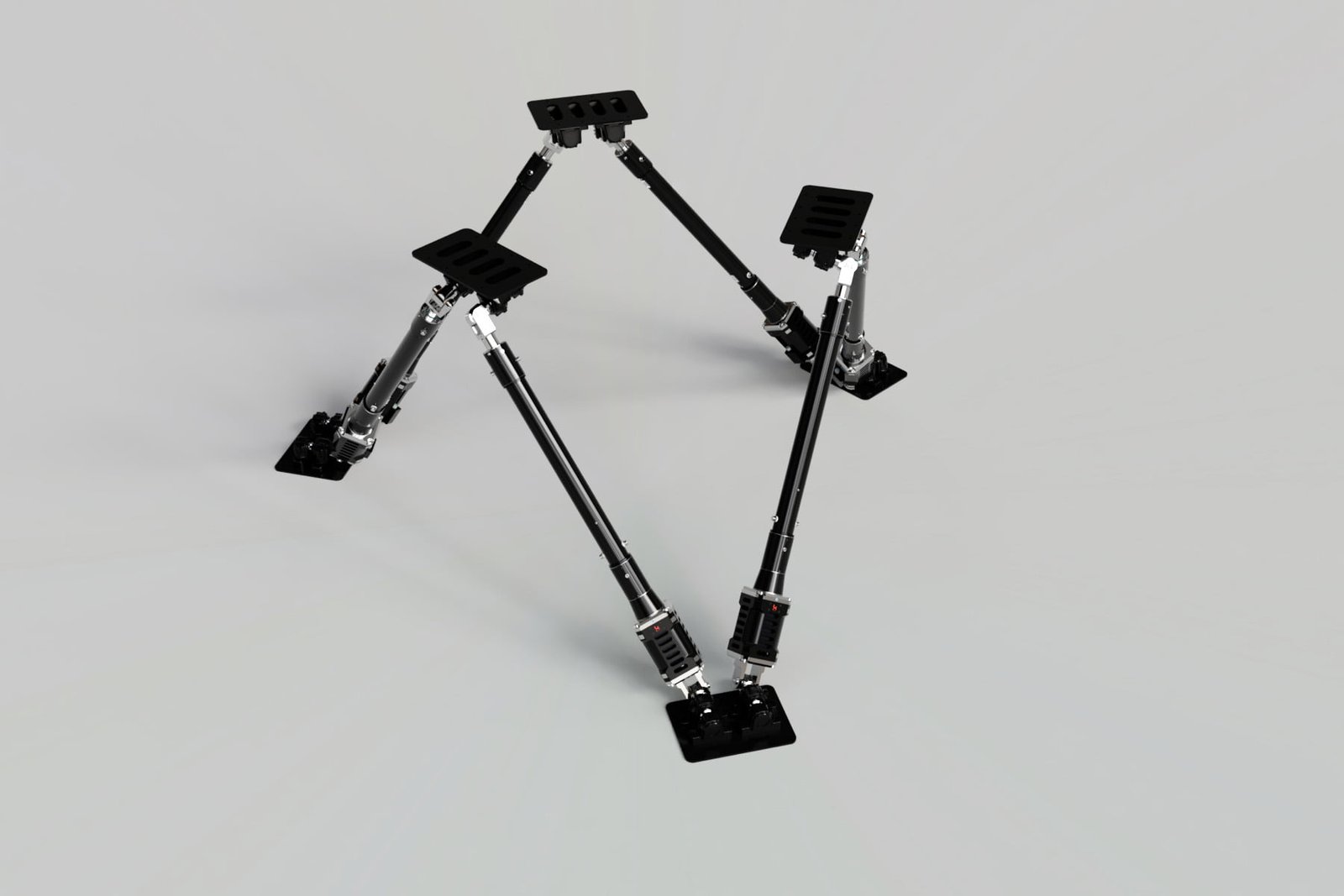

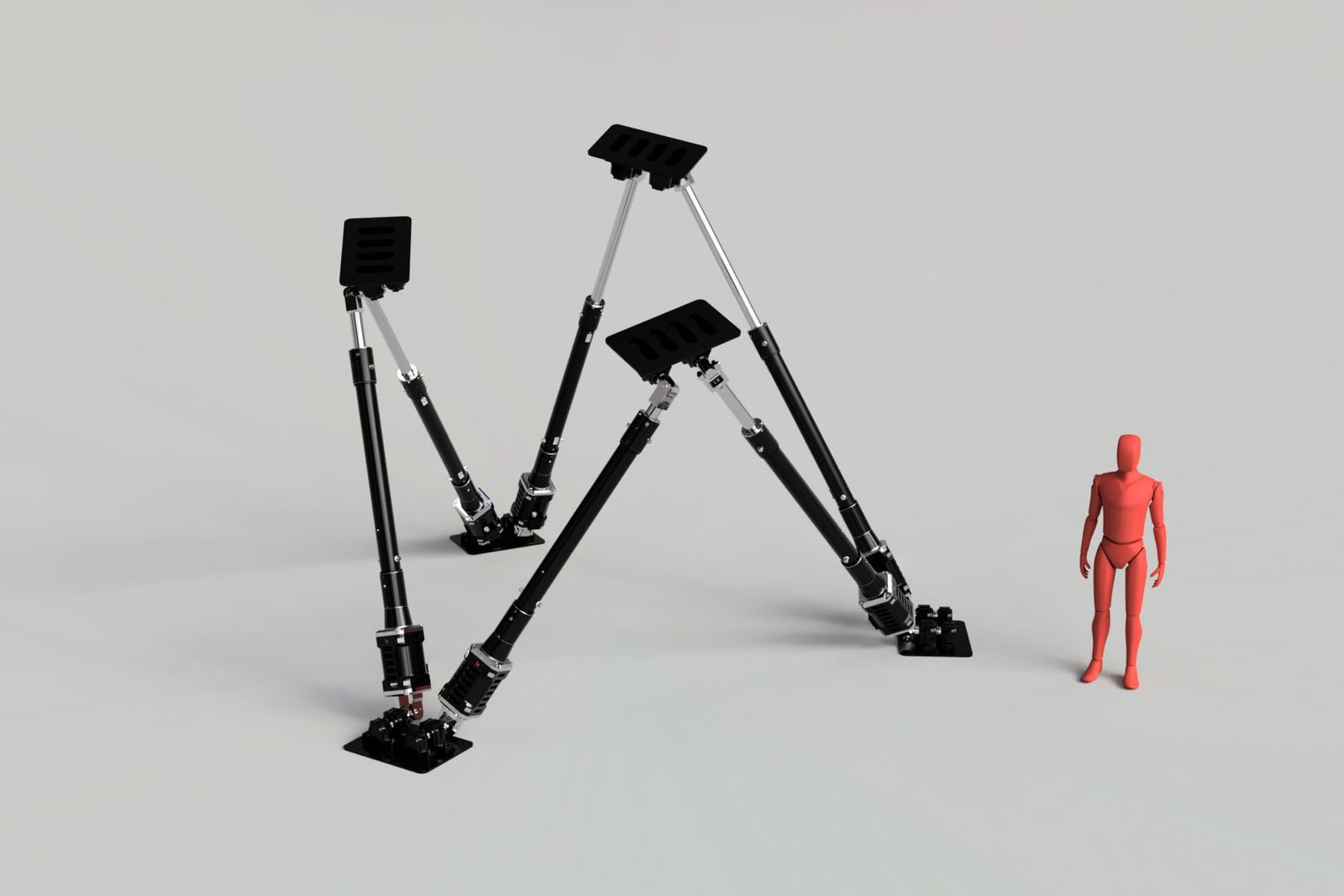

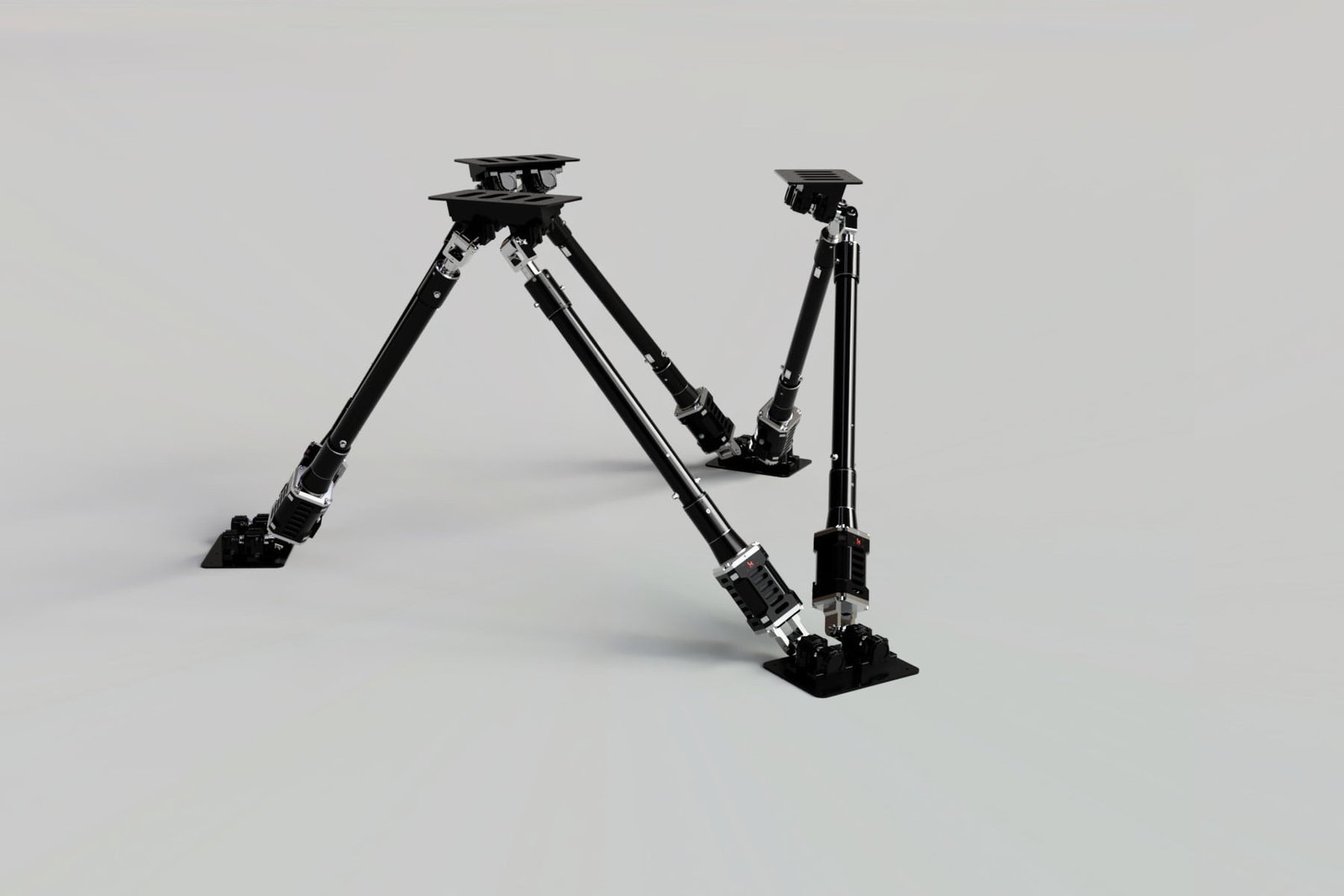

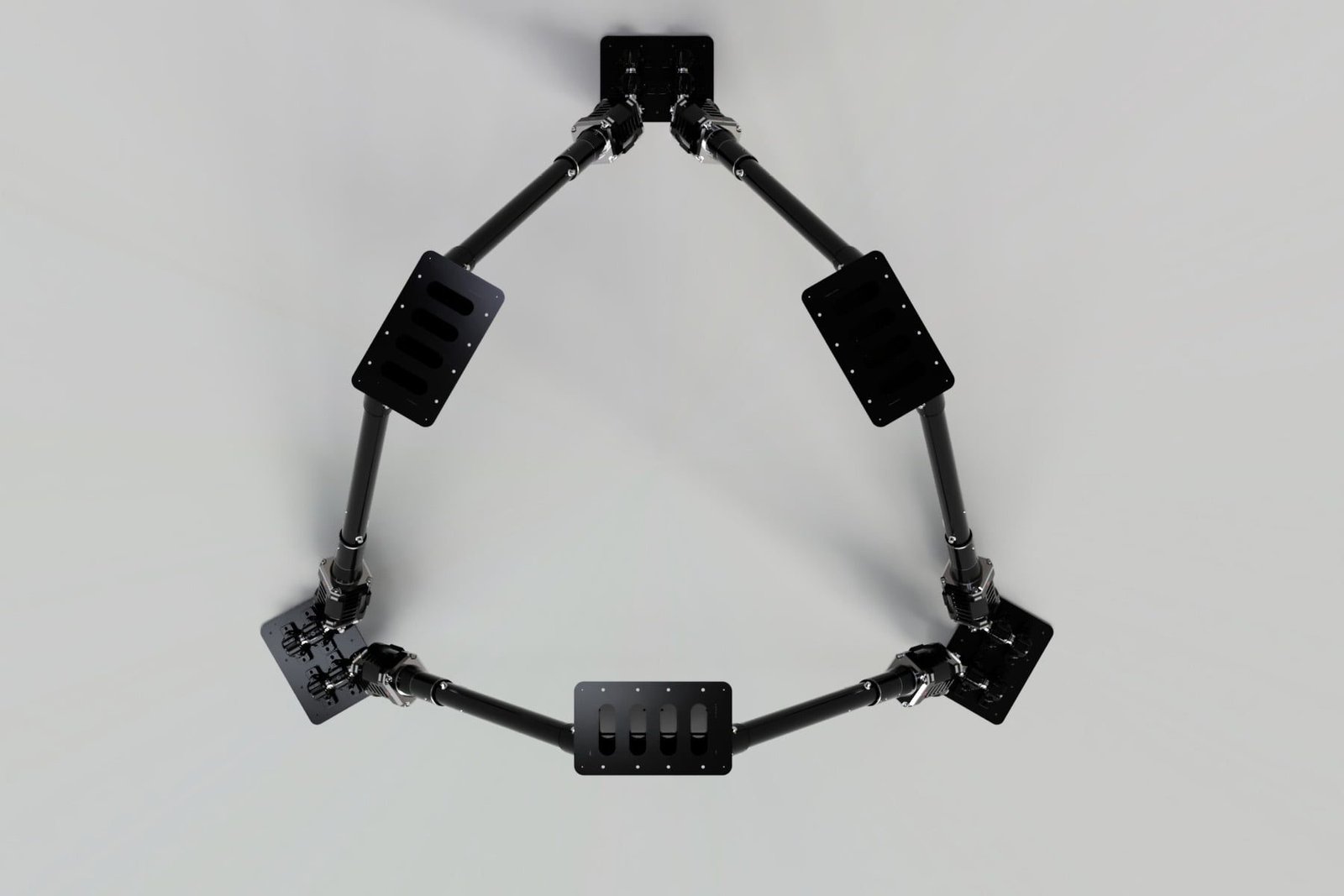

KNT6SR-7500 FFS
Level B+

KNT6SR-7500 Level B+

With a max payload of + 7500kg/16534lb , depending on model specification. We offer tailored solutions according to your requirements to provide the most cost-effective solution for each client, thus avoiding paying extra for unused performance.

The motion platform is supplied with floor anchoring plates and top actuator mounting plates. If you require a top frame with specific dimensions, talk to us about your requirements and we will study the case in order to present you with a design proposal.

Each platform includes a remotely located electric cabinet, where all the electronics will be installed and organized, for easy maintenance and troubleshooting.

For a full list of features and benefits, Contact Us

- Max Payload: From 7500kg/16534lb + (Different models)

- Ready for EASA/FAA FFS Level-B certification

- Prolonged service life

- Built to sustain higher acceleration loads

Energy Recovery System which reduces energy consumption

Fail-Safe PLC & IO's

Industrial grade high reliability components

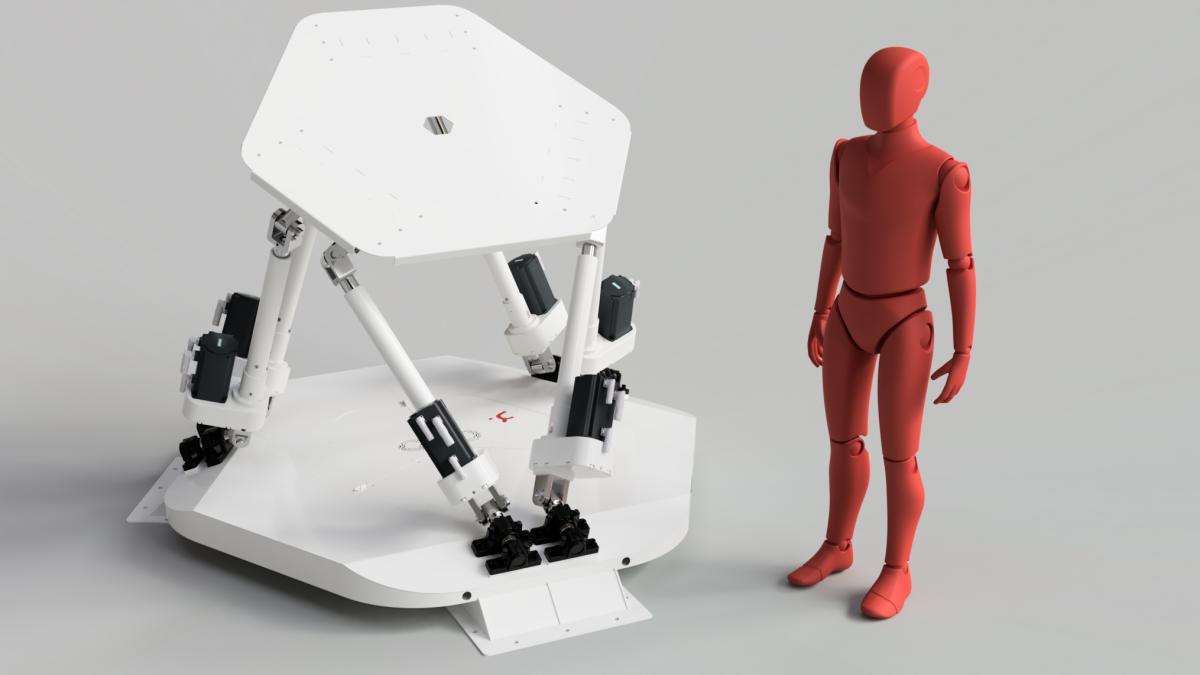

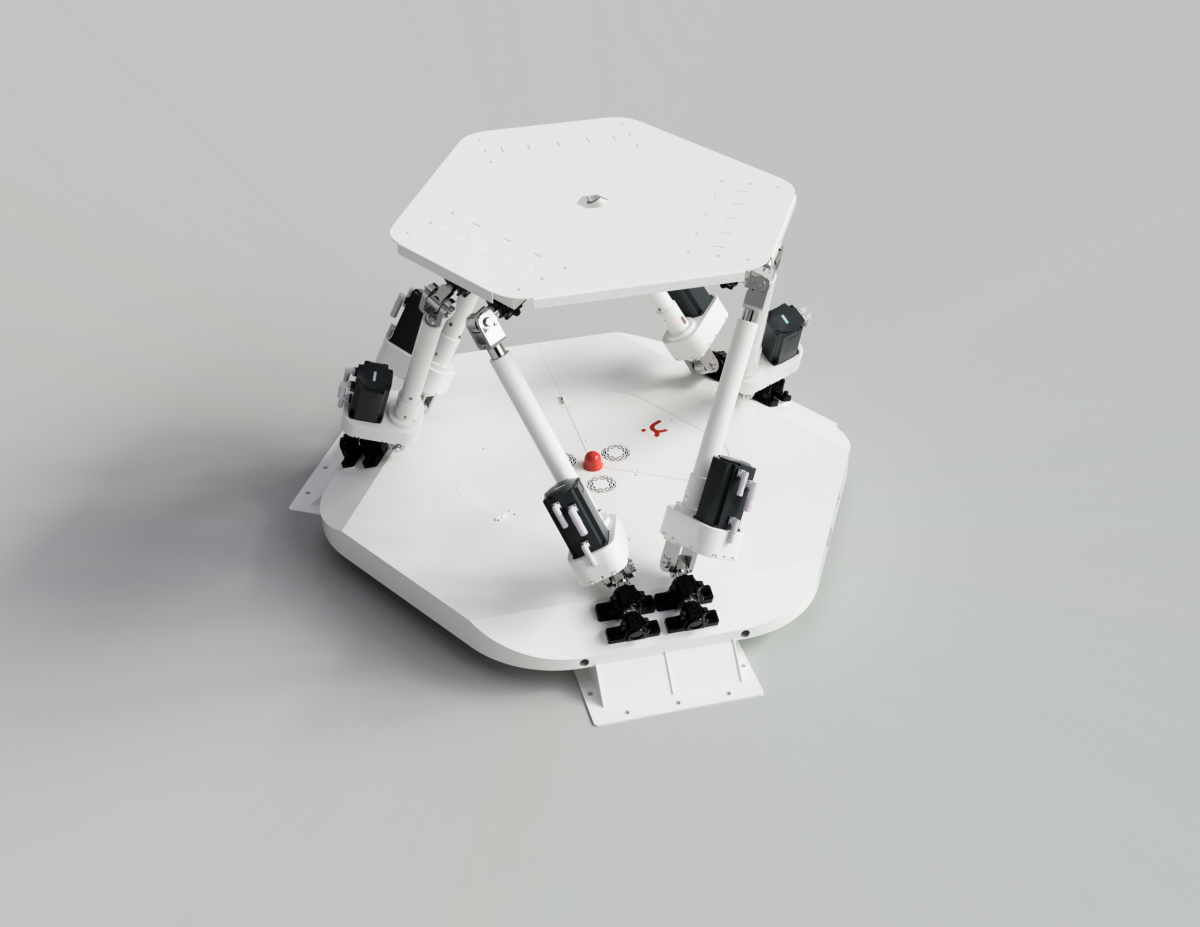

KNT6P-1000/2300

The KNT6P-1000 to KNT6P-2300 Series 6DOF motion platforms are intended for users who require a max payload from 1000kg/2204lb up to and including 2300kg/5070lb.

We offer tailored solutions according to your requirements to provide the most cost-effective solution for each client, thus avoiding any extra charges for unused performance.

The motion platform is supplied with an integrated electric cabinet, floor anchoring plates, and top actuator mounting plates with a basic motion frame. If you require a top frame with specific dimensions, let us know and we will study the case in order to present a design proposal.

For a full list of features and benefits, Contact Us

- Max Payload: From 1000kg/2204lb to 2300kg/5070lb (Different models)

- Customized configuration & design to meet specific performance requirements

- Easy and low interval maintenance

- For small/mid sized cockpits or industrial testing applications

Fail-Safe operation; Built-in Holding Brake

Smooth motion cueing thanks to well programmed and calibrated motion software

Industrial grade high reliability components

Impressive performance to price ratio

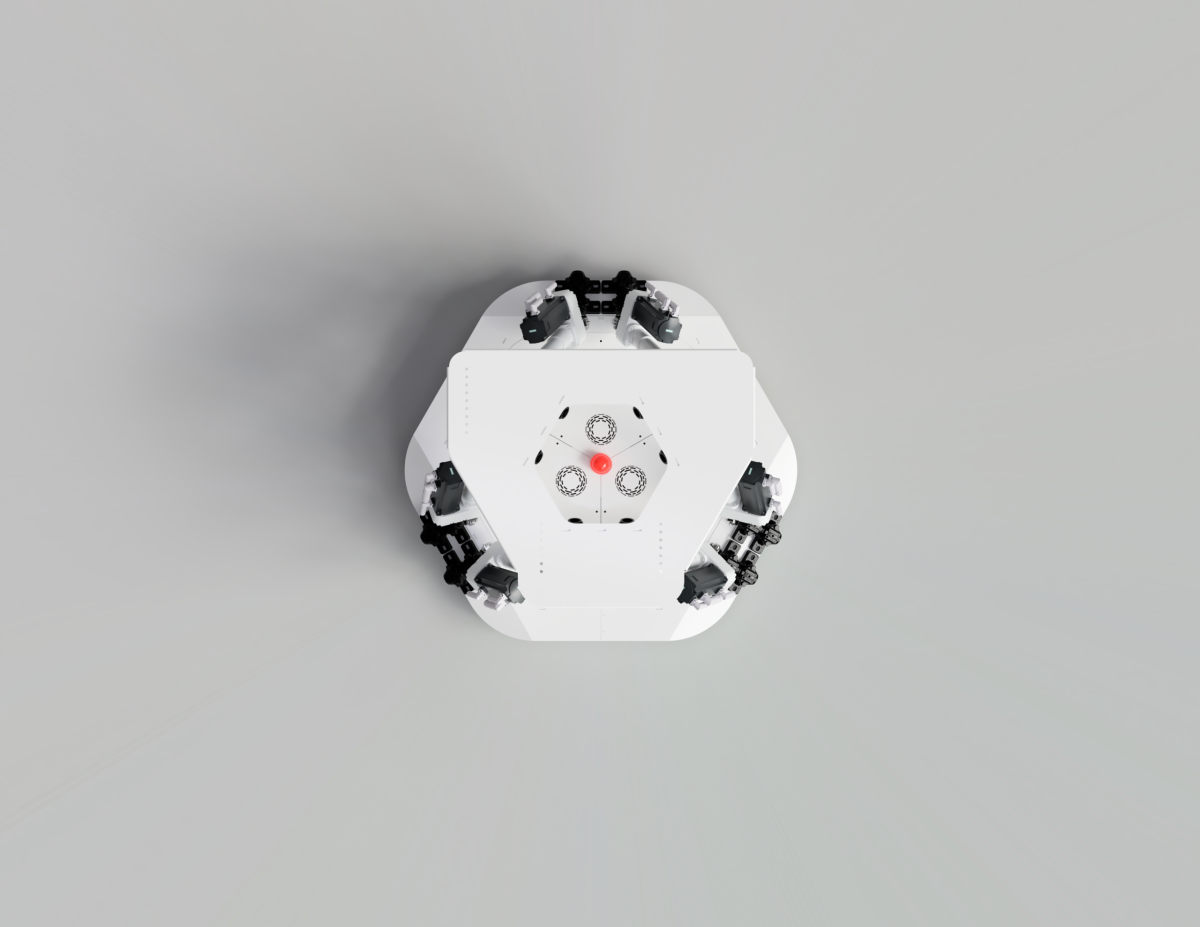

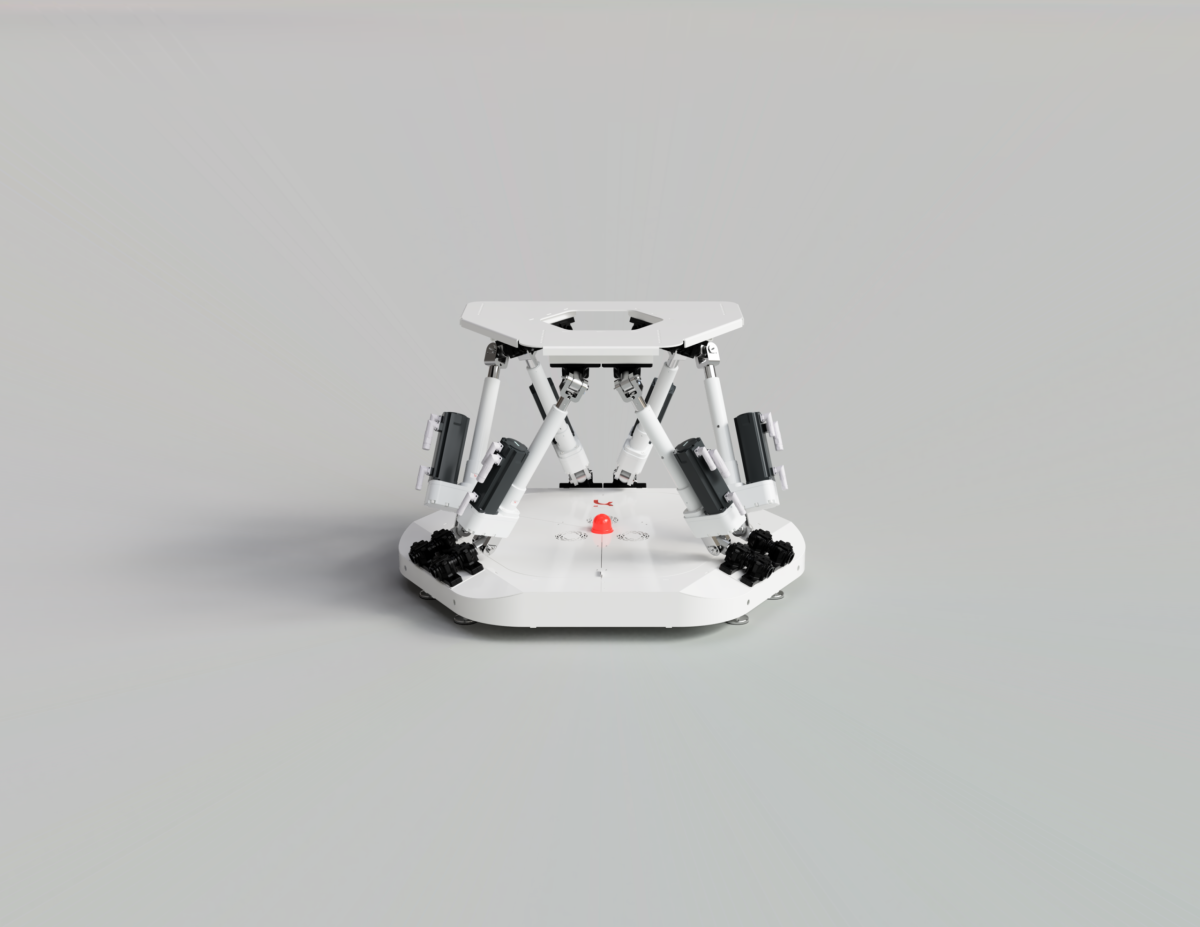

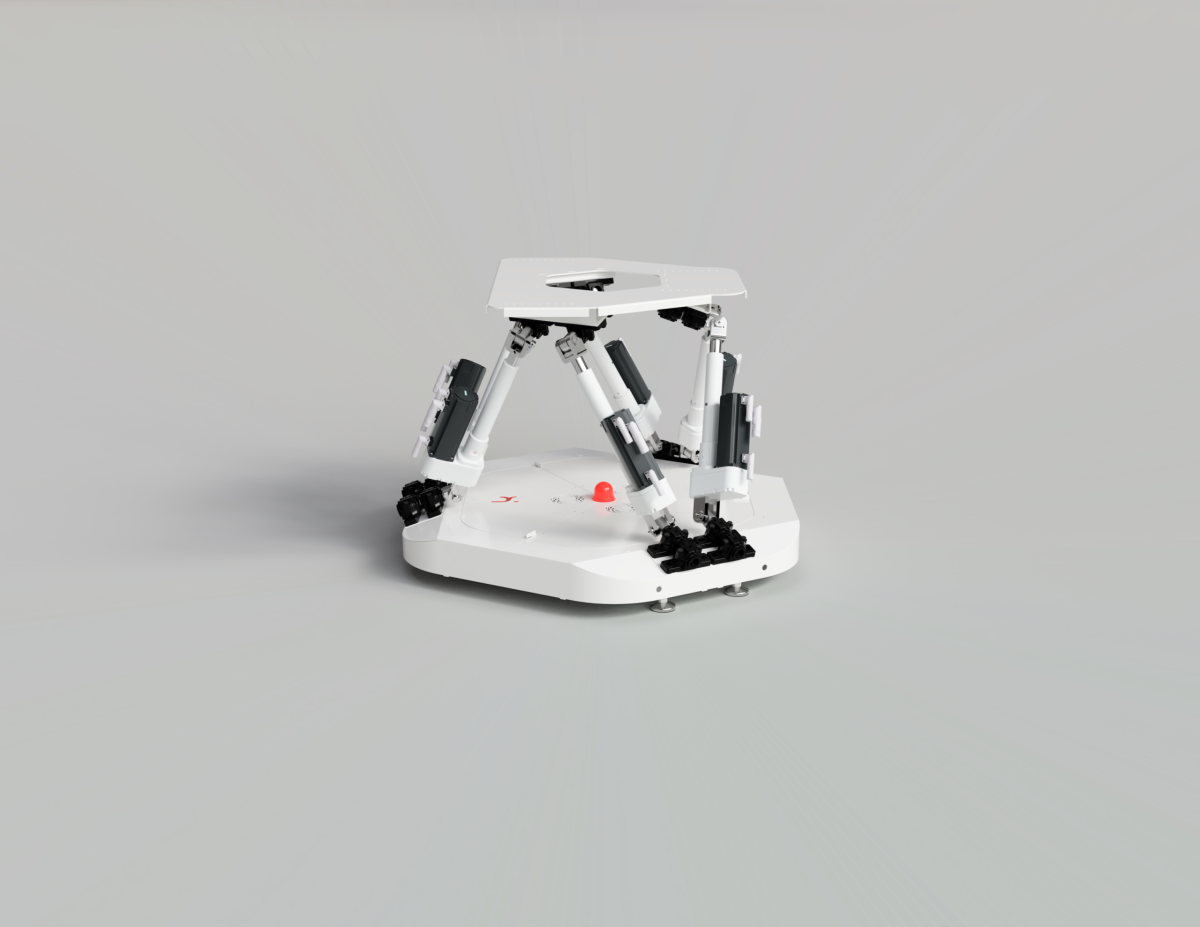

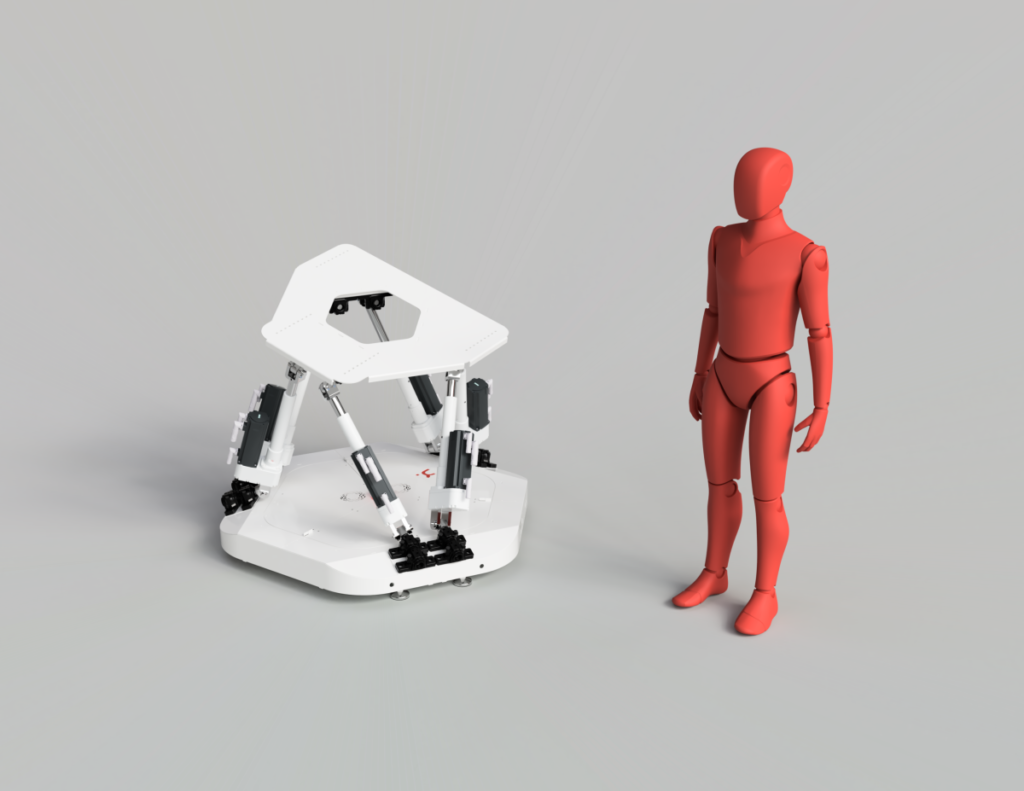

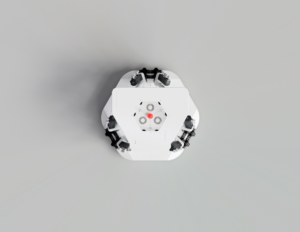

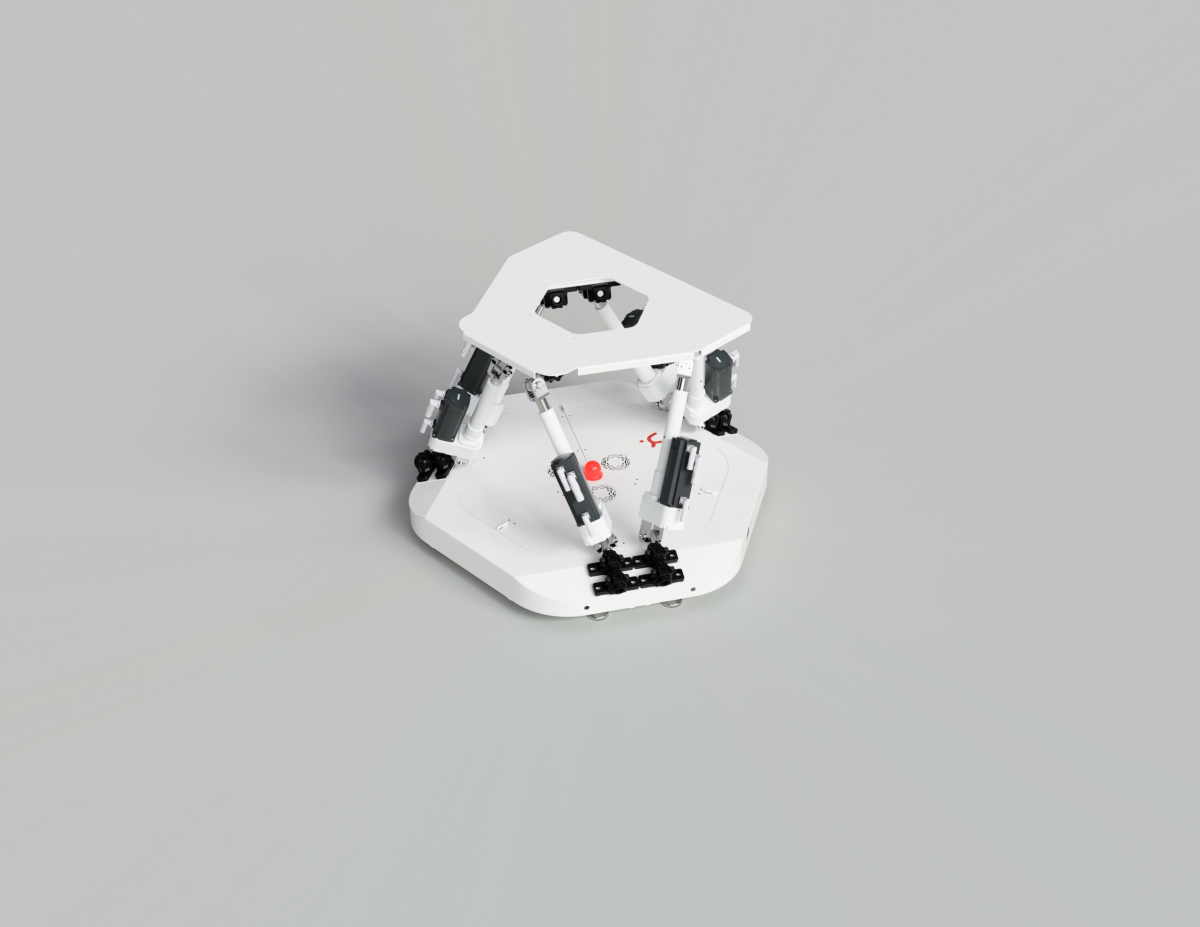

KNT6P-250/500

With a max payload of 250-500kg/550-1100lb and with support feet, this 6DOF motion platform is the ultimate solution for any low weight / single-seated simulation with the necessity for easy transportation.

Because of its small size (1400mm x 1400mm)/(55,1in x 55,1in) it may be delivered assembled and as a plug and play solution where you'd be up and running in no time. It provides additional stability during high inertia loads, thanks to a well designed platform.
